This is a new type of hex bolt developed in response to market feedback such as "Always feel unsure of tightening head cap screw" , "When torque is applied, the screw hole is stripped!"

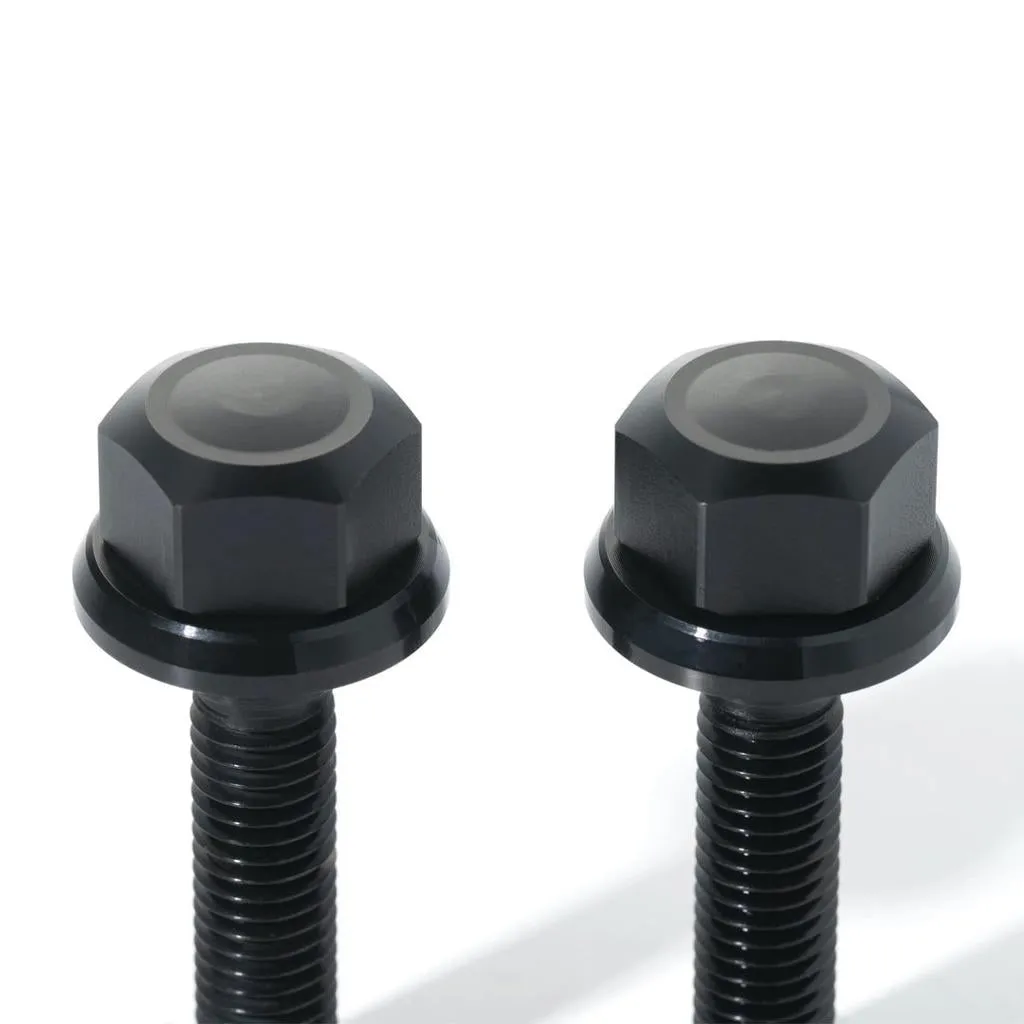

The 15M8Bolt is an M8 bolt with a 1.25 pitch, developed specifically for hubs that are secured with a socket bolt. The width of the hexagonal part is 15mm so as with the Elite Hub Nut, you may use a Runwell 15mm wrench. The washer is crimped and can be tighten without scratching the end.

Generally, the ones on the market are 5mm or 6mm hexagon socket bolts that are tightened with a hexagon wrench, but users have complained that "the torque is not enough and the wheel slips out of place" and "if I tighten it too much, the hexagon socket gets stripped." To solve these problems, we developed a bolt that can be tightened with a 15mm wrench.

SPECIFICATIONS
Total Length: 47mm
Threaded section: 30mm
Thread Pitch: M8 x 1.25mm
Weight: Front: 66g (set) / Rear: 68g (set)
Material: Steel

INCLUDES
One Pair of bolts

NOTES

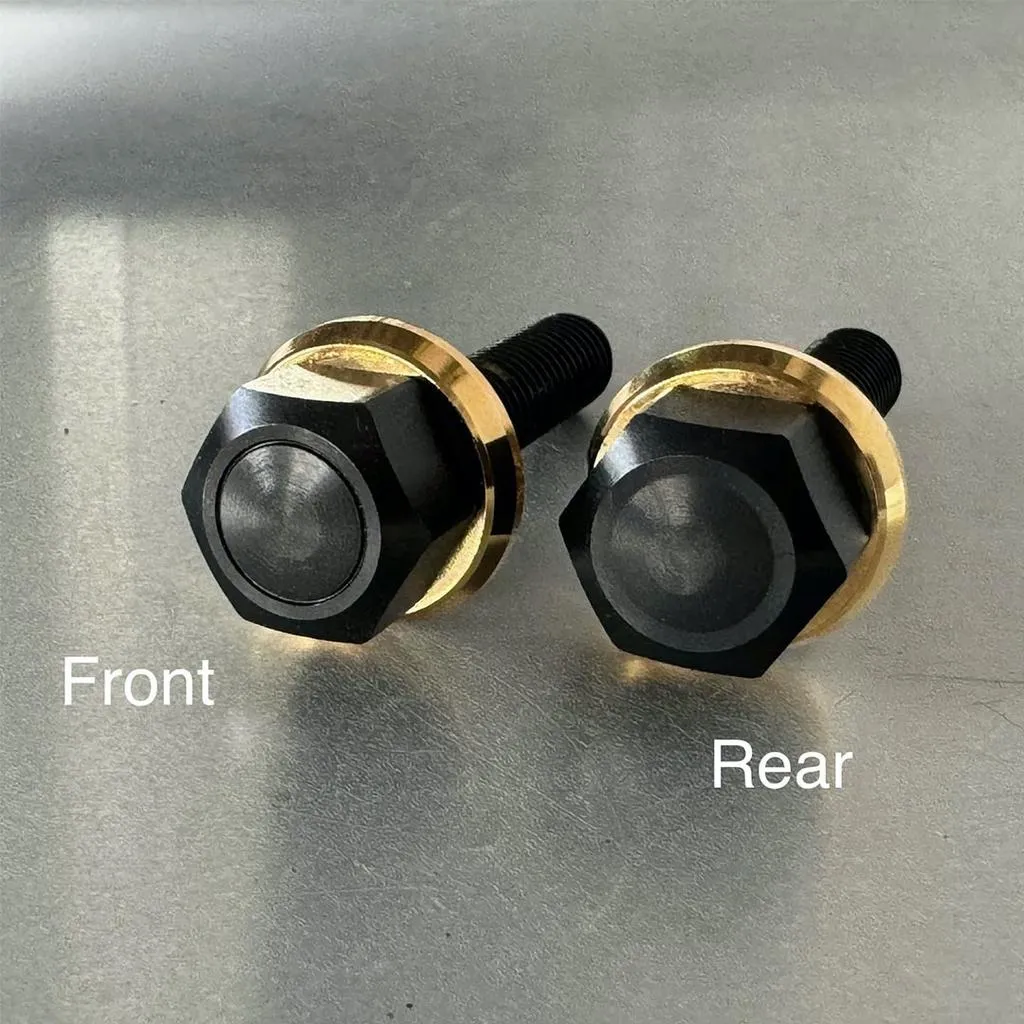

Please note that the front and rear wheels have different specifications. The diameter of the part that the fork end recess is 9mm for the front and 10mm for the rear.

Additionally, there is a hook mark on the middle of threads that occurs during surface treatment. This does not affect use.

OPTIONS
Fitment: Front / Rear

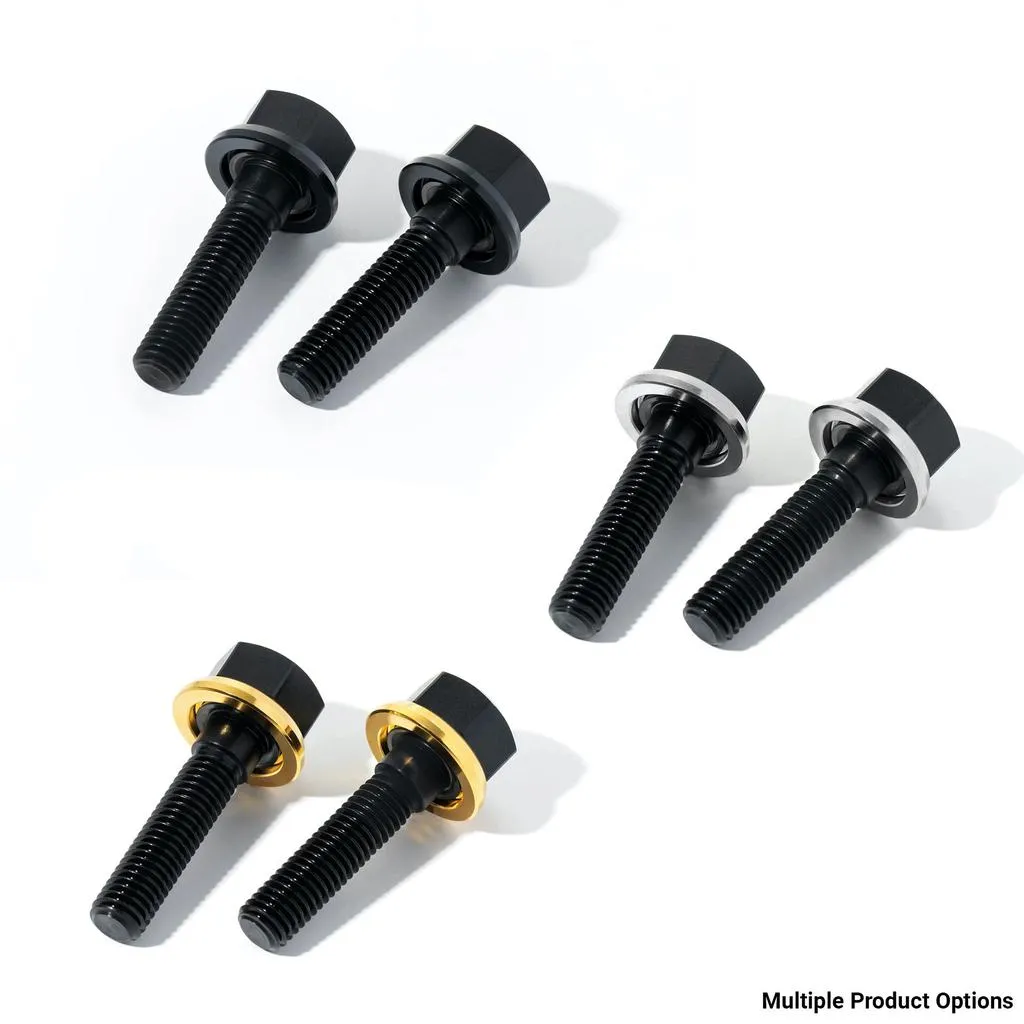

Colours: Black/Black, Black/Silver, Black/Gold

COMPATIBILITY
Please Check your hub has an M8x1.25mm thread, and allows for up to 30mm of thread engagement internally. Provided your thread matches, and there is adequate depth, these will fit.
